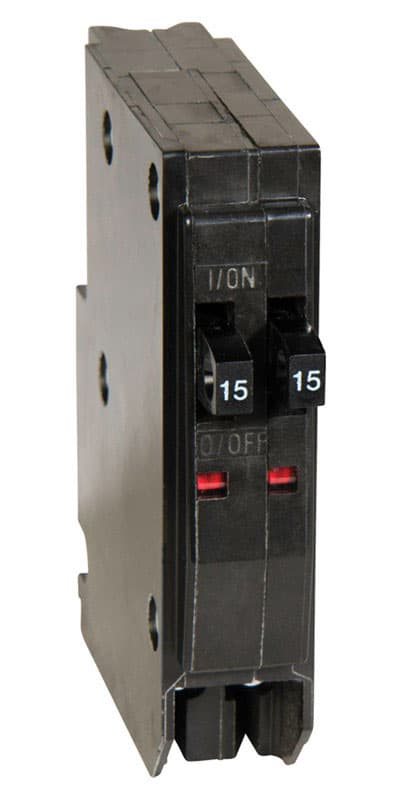

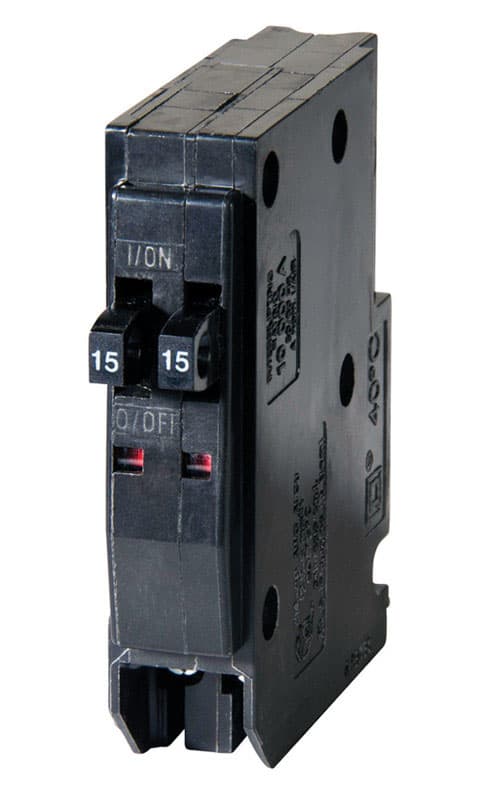

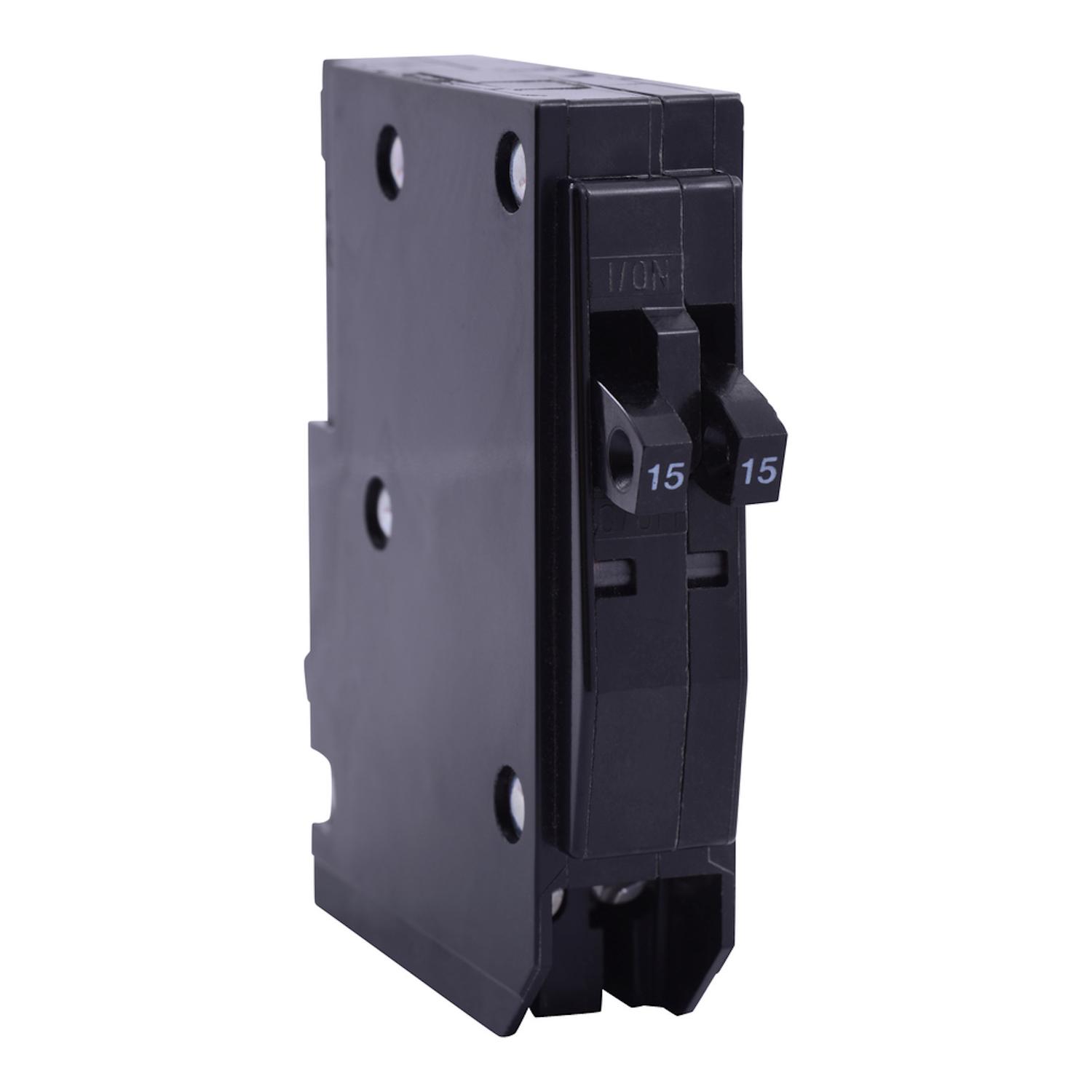

Square D QO 15/15 amps Tandem Single Pole Circuit Breaker

SKU# 30629

Store Pickup

Ready within 2 hrs

FREE Pickup at:

Sulphur

Store address:

2950 South Ruth Street

Curbside, Drive-Thru or In-Store

Local Delivery

Not available

Item(s) must be in stock at nearest Stine!

Delivery within 15 miles

$1.00

Delivery within 50 miles

$100.00

Ships in 1-3 days (Monday - Friday)

Standard Delivery

Ships in 5-7 business days

Nationwide shipping within the US

About clearance items

Clearance items are available while supplies last. Due to the nature of the clearance process, an inventory error could occur. We will make our best efforts to inform you as soon as possible if the goods ordered are not available. Clearance items are non-returnable. Clearance items may not be available in all locations and cannot be transferred from one store to another.

The Square D by Schneider Electric QO 15 amp single-pole tandem circuit breaker is intended for overload and short-circuit protection of your electrical system. This breaker offers 2 circuits in the space of just 1 and is compatible with QO load centers, CSED devices and NQOD panel boards. The ANSI-certified and UL-listed unit is rated for 120 or 240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between in off and in on and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.

QOT tandem breakers have a mounting cam
Installation into a QO load center can only be made in those positions having a mounting pan rail slot
10A to 30A circuit breakers are suitable for use with 60 degree Celsius or 75 degree Celsius conductors
35A-125A circuit breakers are suitable for use with 75 degree Celsius conductors
